BELPA®FLEX

EXPANSION JOINTS

FABRIC EXPANSION JOINTS BELPA®FLEX

MONTERO´S expansion joints are mostly used in boilers, industrial furnaces, cement plants, power plants, cogenerations, paper industries and general industry in order to absorb vibrations in ducts, pipes and equipments with air up to 1200 ºC temperatures and less than 1 bar.

MONTERO manufacture and design with different configurations, depending on the application and the working conditions.

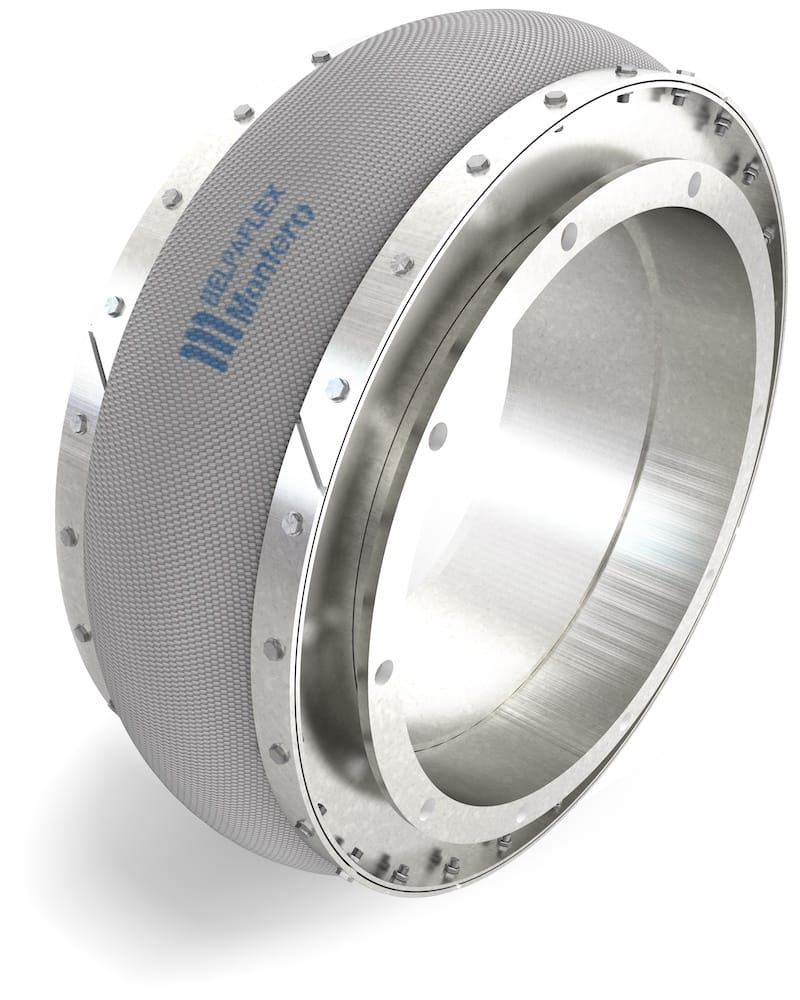

BELPA®FLEX BA

Not aggressive
media applications

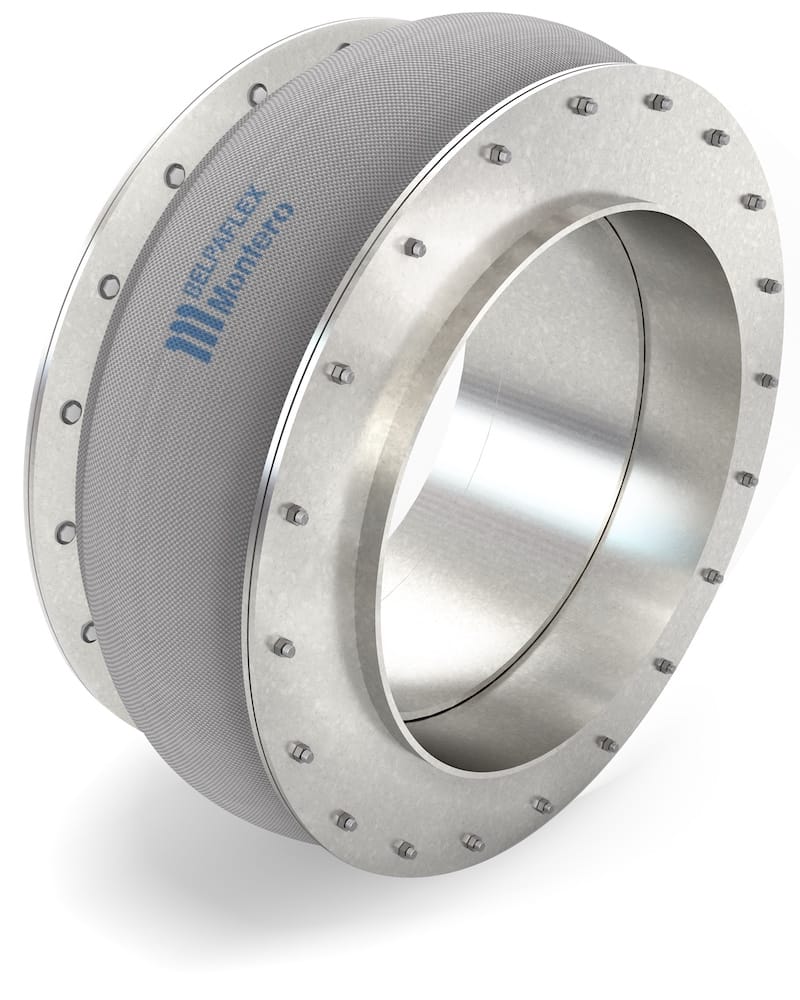

BELPA®FLEX ER

Applications with
large axial movements

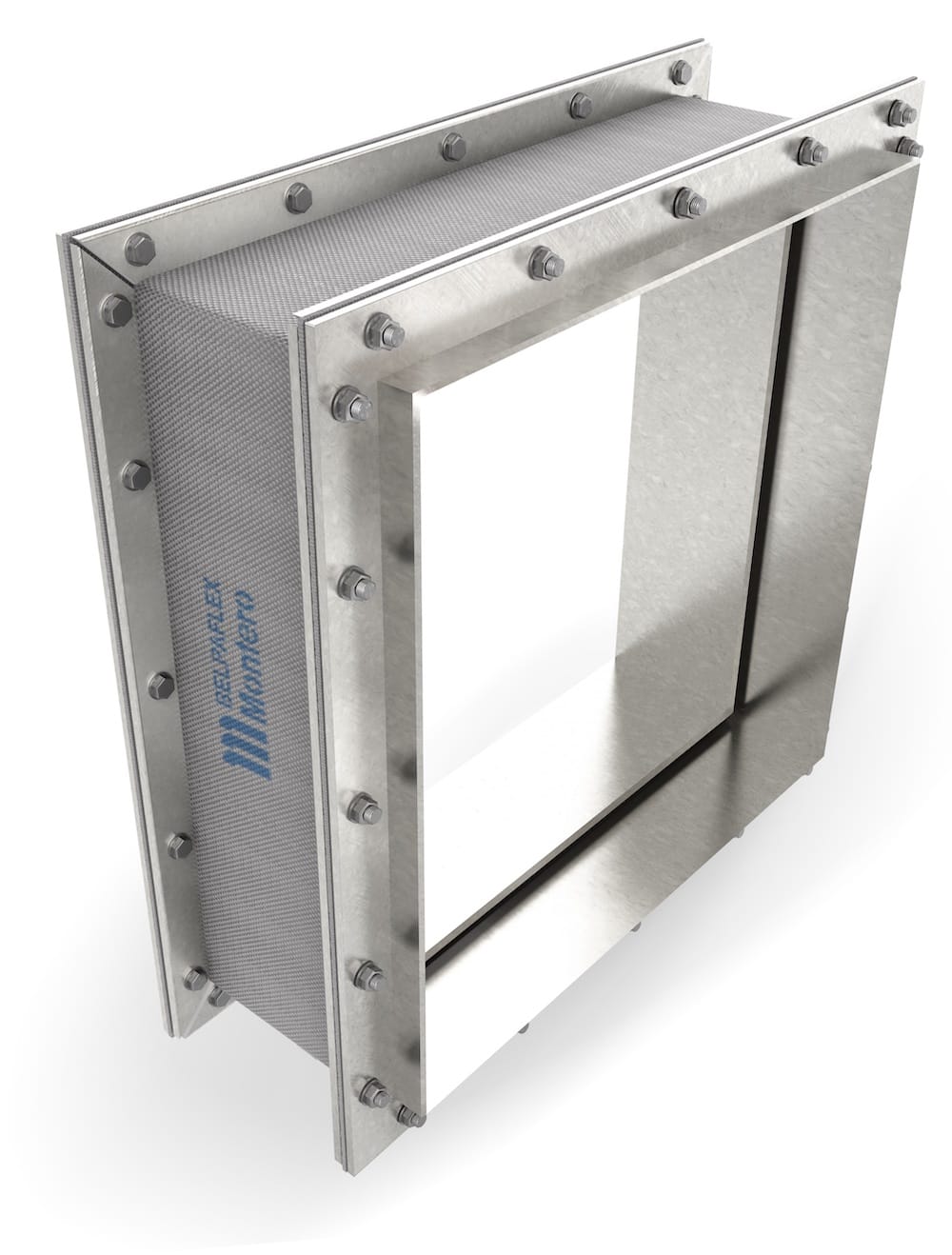

BELPA®FLEX EC

High temperature
applications

METALLIC EXPANSION JOINTS BELPA®FLEX

axial expansion joint absorb expansion joitns BELPA®FLEX , caused by the thermal difference of the media inside pipeline. BELPA®FLEX are manufactured according EJMA standad & DIN 17440/DIN 2401.

depend on pipeline conection, there are 3 kind of expasion joint : FLOATING FLANGE, FIXED FLANGE AND BUTT WELDED.

METALLIC AXIAL EXPANSION JOINT FIXED FLANGE

BELPA®FLEX 30 MKS

Bellow AISI 321 : Flange ST37: -20/+10 mm: PN 16 DN25-DN300

BELPA®FLEX 30 MKS-L

Bellow & inner sleeve AISI 321 : Flange ST37: -20/+10 mm: PN 16 DN25-DN300

BELPA®FLEX 60 MKS-L

Bellow & inner sleeve AISI 321 : Flange ST37: -40/210 mm: PN 16 DN50-DN300

METALLIC AXIAL EXPANSION JOINT FLOATING FLANGE

BELPA®FLEX 30 MKB

Bellow AISI 321 : Flange ST37: -20/+10 mm: PN 16 DN25-DN300

BELPA®FLEX 30 MKB-L

Bellow & inner sleeve AISI 321 : Flange ST37: -20/+10 mm: PN 16 DN25-DN300

BELPA®FLEX 60 MKB-L

Bellow & inner sleeve AISI 321 : Flange ST37: -40/210 mm: PN 16 DN50-DN300

METALLIC AXIAL EXPANSION JOINT BUTT WELDED

BELPA®FLEX 30 MKD

Bellow AISI 321 : Flange ST37: -20/+10 mm: PN 16 DN25-DN300

BELPA®FLEX 30 MKD-L

Bellow & inner sleeve AISI 321 : Flange ST37: -20/+10 mm: PN 16 DN25-DN300

BELPA®FLEX 60 MKD-L

Bellow & inner sleeve AISI 321 : Flange ST37: -40/210 mm: PN 16 DN50-DN300
