MONTERO ®
SEALING RINGS
–
MONTERO ® RINGS
Ecograflex
Low-emission ring sets
–

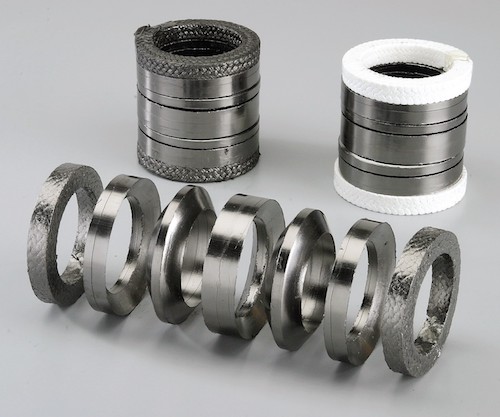

ECOGRAFLEX RINGS
Ecograflex low-emission ring sets. Ecograflex is a set of rings…
–

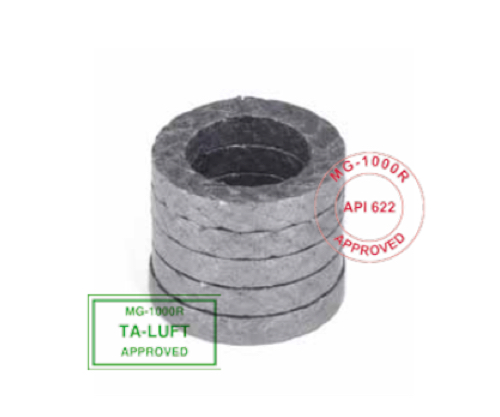

MG 1000R API 622/TA LUFT
Packing for fugitive emissions control in valves.
–
MIXED SETS
–
MIXED SET MONTERO®
AGX+MG1000R
Our two leading fugitive emissions control products come together to form the MONTERO® AGX + MG 1000R packing. The center rings are made of high-purity AGX expanded graphite with C>99%, which meets the requirements of SHELL MESC SPE 85/203 certification. The end rings are made of MONTERO® MG 1000R packing. The set can be designed with a traditional straight section or a conical/ECOGRAFLEX section.
–
MONTERO® AGK + MG780R
Universal graphite packing for valves incorporates a corrosion inhibitor. Its low coefficient of friction also reduces the torque required by the actuator. The set consists of shaped graphite rings along with expanded mineral graphite packing with an Inconel insert. Suitable for high temperatures and pressures, the MG780R packing complies with API 607:589 Fire Safe Test Approval.
–
MONTERO® AGK + MG420
Specially designed for the petrochemical industry, they are capable of operating under the most demanding pressure and temperature conditions. The set consists of graphite-shaped rings along with continuous carbon filament packing impregnated with graphite powder.
